Compact Construction
SMALL MACHINES. BIG RESULTS
DON’T LET THE SIZE FOOL YOU.
Whether you’re acquiring your first machine or adding to a fleet, there’s a John Deere Excavator, Skid Steer or CTL that’s all-in for you.
Skid Steers
YOUR INSPIRATION, OUR INNOVATION.
Before hitting the G-Series drawing board, we hit the phones and the road — connecting with skid steer and compact track loader (CTL) users like you to find out what they need. We listened, then rolled up our sleeves and applied what we learned. The result? Five compact models in vertical-lift and radial-boom configurations. With a look and feel like their larger siblings, plus amped-up specs and a wider variety of options, these reimagined do-it-alls have what it takes to fit the way you work, wherever you work.

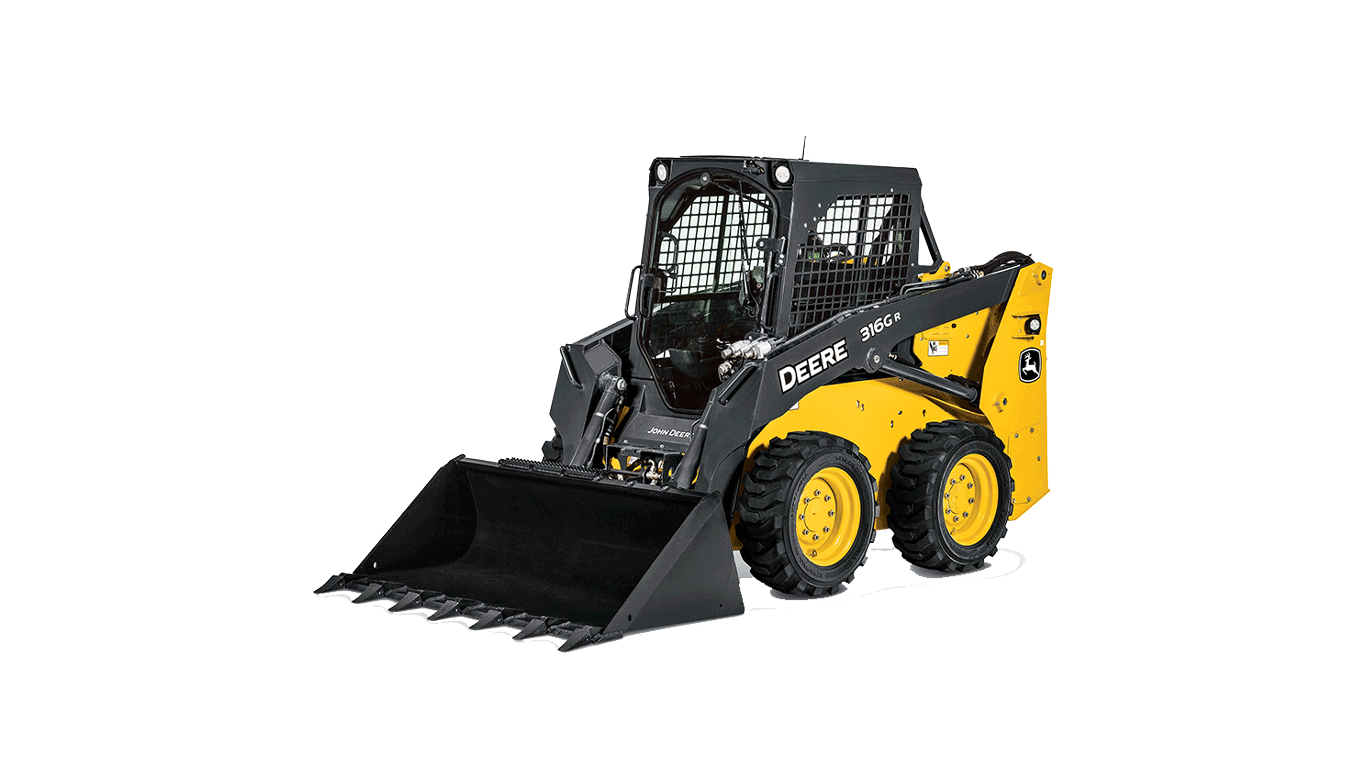

316GR FT4
Skid Steer
- Rated Operating Capacity: 795 kg (1,750 lb.)
- Gross Horsepower: 48.5 kW (65 hp) @ 2,600 rpm
- Net Horsepower: 45.6 kW (61 hp) @ 2,600 rpm
- Operating Weight: 2,806 kg (6,180 lb.)

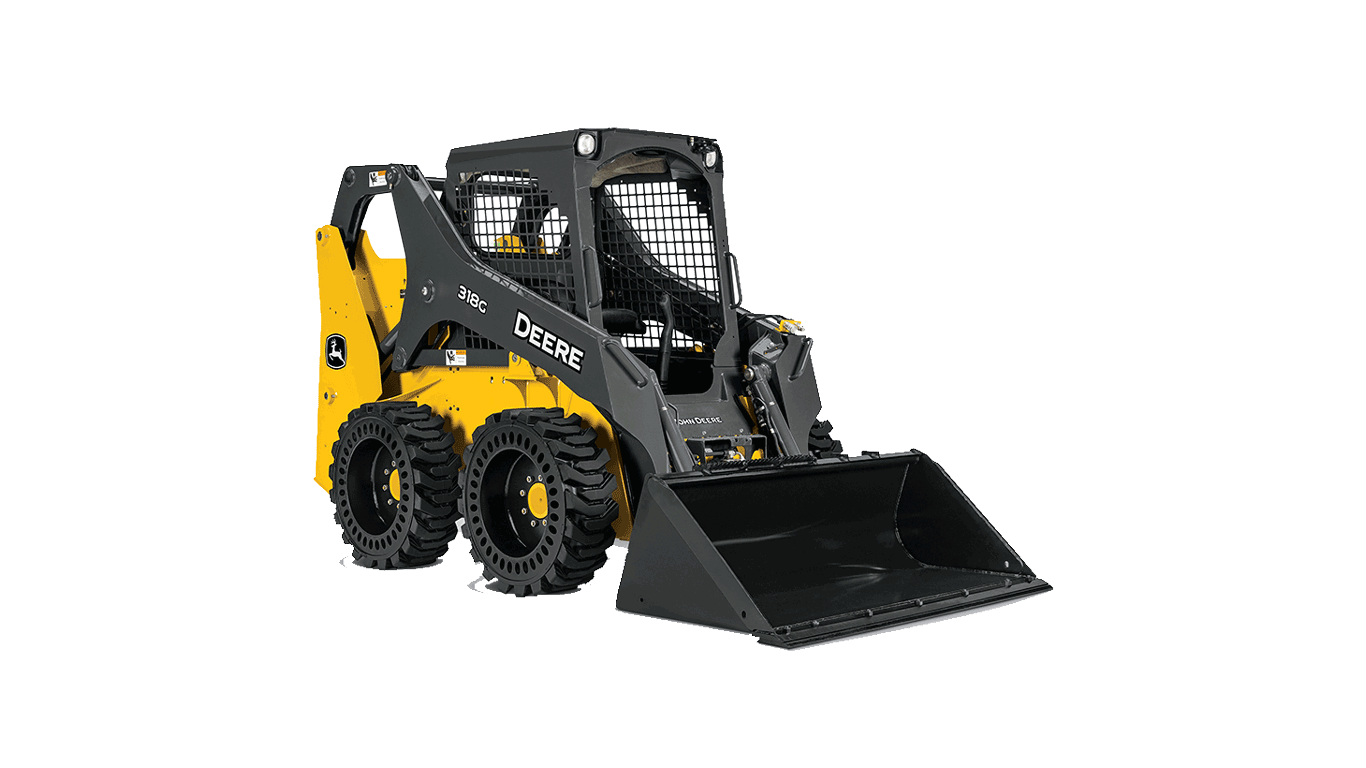

318G FT4
Skid Steer
- Rated Operating Capacity: 883 kg (1,945 lb.)
- Gross Horsepower: 48.5 kW (65 hp) @ 2,600 rpm
- Net Horsepower: 45.6 kW (61 hp) @ 2,600 rpm
- Operating Weight: 2,970 kg (6,542 lb.)
320G FT4
Skid Steer
- Rated Operating Capacity: 994 kg (2,190 lb.)
- Gross Horsepower: 51.7 kW (69 hp)
- Net Horsepower: 49.4 kW (66 net hp)
- Operating Weight: 3246 kg (7,150 lb.)

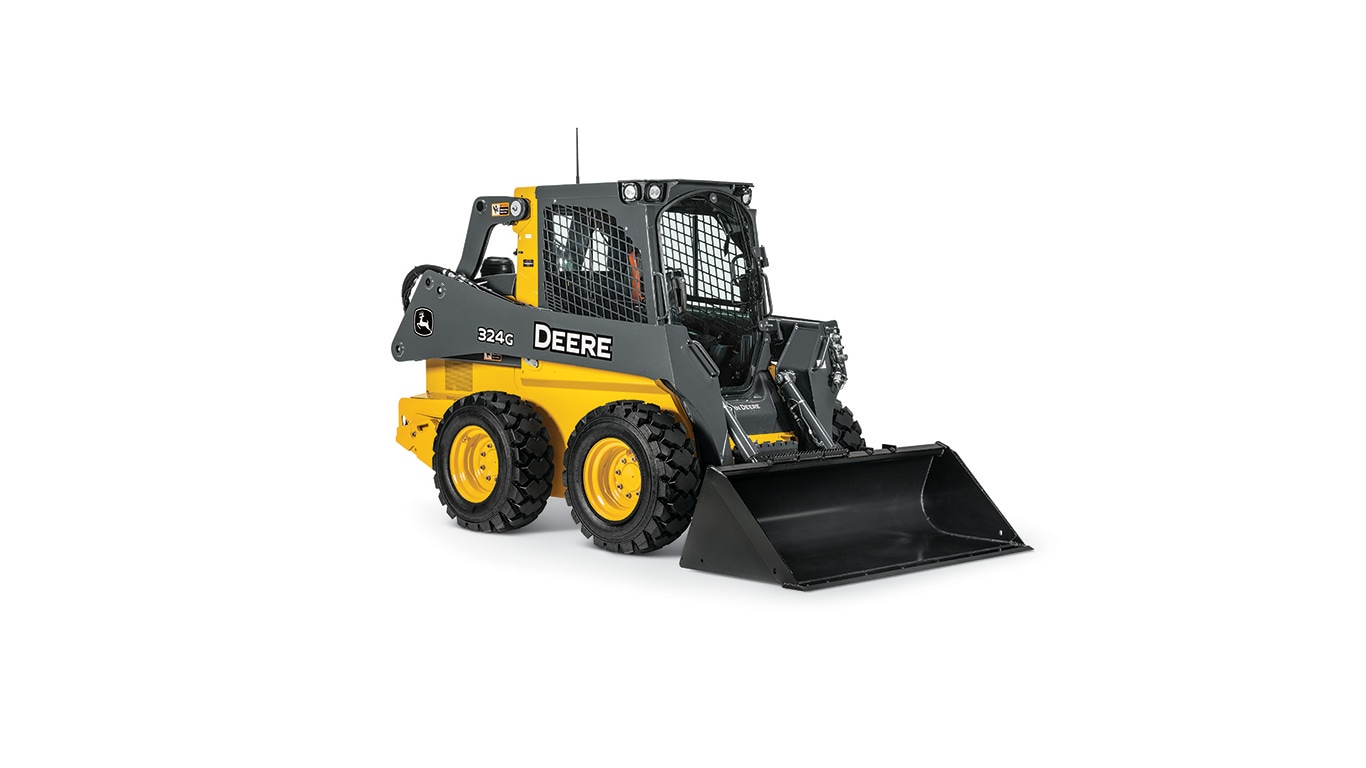

324G FT4
Skid Steer
- Rated Operating Capacity: 1221 kg (2,690 lb.)
- Gross Horsepower: 55.0 kW (74 hp)
- Net Horsepower: 52.5 kW (70 net hp)
- Operating Weight: 3496 kg (7,700 lb.)

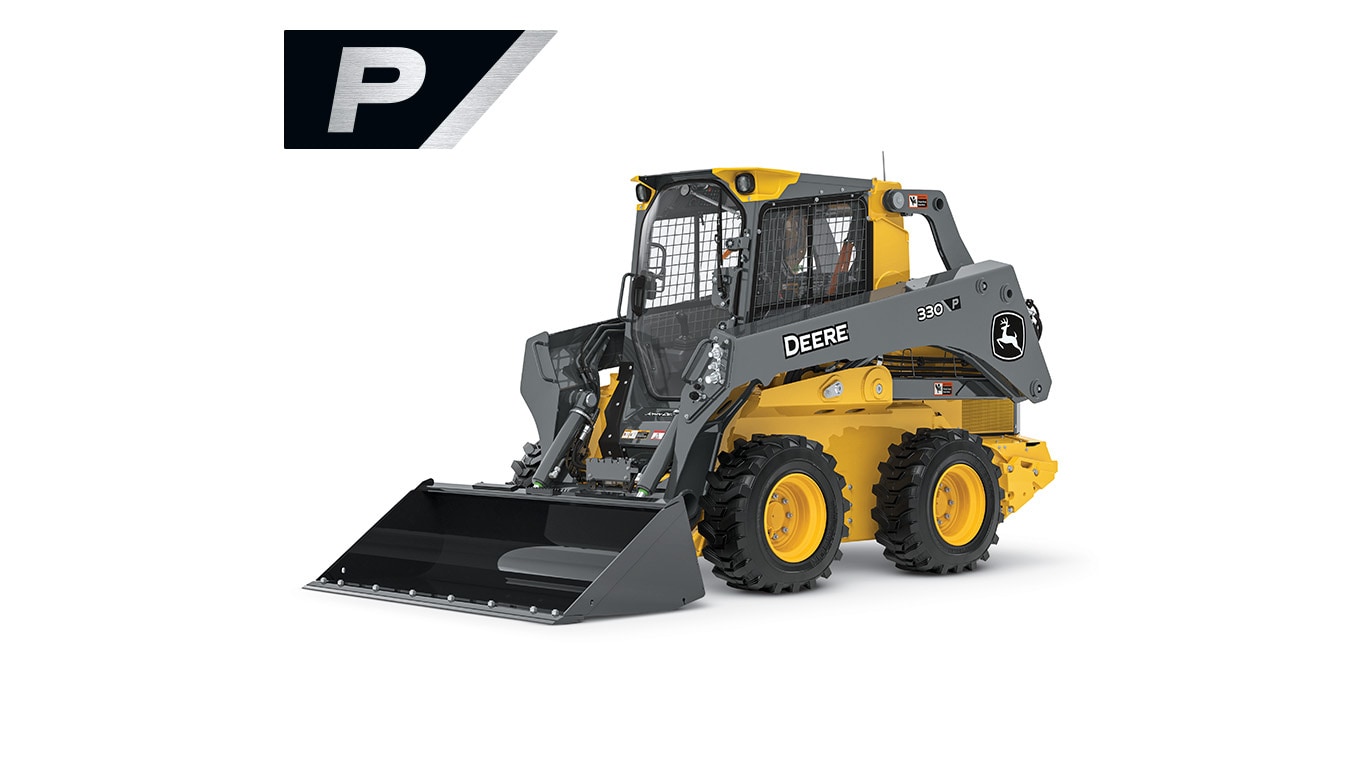

330 P-Tier
Skid Steer
- Gross Rated Power: 73.0 kW (98.0 hp)
- Net Peak Power: 70.8 kW (95.0 hp)
- Rated Operating Capacity: 1339 kg (2,950 lb.)
- Operating Weight: 4508 kg (9,930 lb.)
- Bucket Breakout Force: 4767 kg (10,500 lb.)
334 P-Tier
Skid Steer
- Gross Rated Power: 88.0 kW (118.0 hp)
- Net Peak Power: 85.5 kW (114.7 hp)
- Rated Operating Capacity: 1816 kg (4,000 lb.) with 1 standard counterweight set
- Operating Weight: 4660 kg (10,264 lb.)
Compact Track Loaders
TAKE A LOAD OFF
ENHANCED ABILITY — AND COMFORT, TOO.
With our G-Series, compact doesn’t mean cramped. Larger entryways with doors that swing out make it easier to get in, get comfortable, and get on with it. Inside, there’s more foot- and legroom. Sealing and cab pressurization have been improved over previous models to help keep the dust out and the noise down, so you can focus on work — and even enjoy the hands-free Bluetooth¨ radio for streaming your favorite media. Operators will also appreciate what they see from the comfortable sculpted seat. Clear sightlines to the cutting edge and bucket corners, above and below the lift arms, and the jobsite ahead and behind instill confidence when working in close quarters.
317G FT4
Compact Track Loader
- Rated Operating Capacity: 965 kg (2,125 lb.)
- Gross Horsepower: 48.5 kW (65 hp)
- Net Horsepower: 45.6 kW (61 hp)
- Operating Weight: 3824 kg (8,423 lb.)
325G FT4
Compact Track Loader
- Rated Operating Capacity: 1176 kg (2,590 lb.)
- Gross Horsepower: 54.8 kW (74 hp)
- Net Horsepower: 52.5 kW (70 net hp)
- Operating Weight: 4313 kg (9,500 lb.)

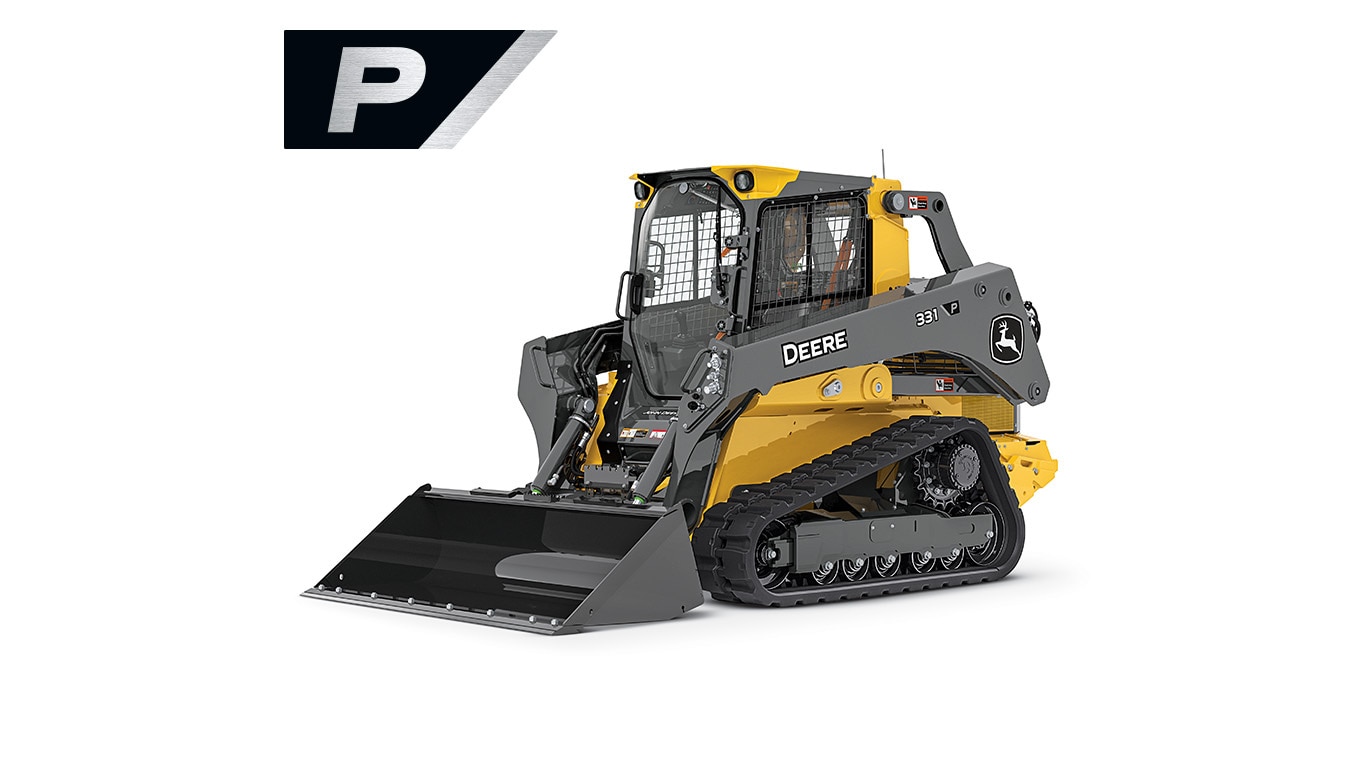

331 P-Tier
Compact Track Loader
- Rated Operating Capacity: 1430 kg (3,150 lb.)
- Gross Horsepower: 73.0 kW (98.0 hp)
- Net Power: 70.8 kW (95.0 hp)
- Operating Weight: 5409 kg (11,914 lb.)
- Bucket Breakout Force: 4994 kg (11,000 lb.)

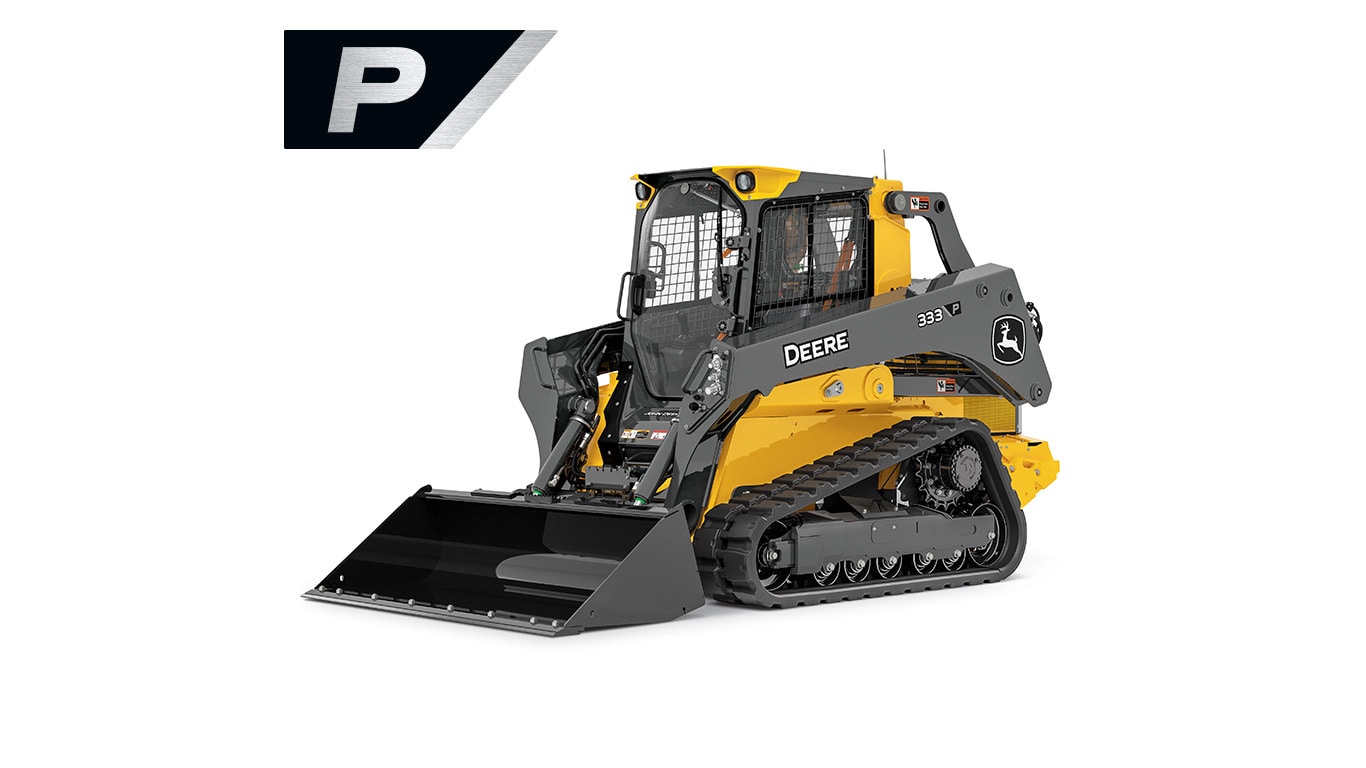

333 P-Tier
Compact Track Loader
- Rated Operating Capacity: 1748 kg (3,850 lb.)
- Gross Horsepower: 80.9 kW (108.5 hp)
- Net Peak Power: 78.9 kW (105.8 hp)
- Operating Weight: 5531 kg (12,183 lb.)
- Bucket Breakout Force: 6243 kg (13,750 lb.)
333G FT4
Compact Track Loader
- Rated operating capacity: 1680 kg (3,700 lb.)
- Gross Power: 74.6 kW (100 hp) @ 2,500 rpm
- Net power: 72.0 kW (96.6 HP) @ 2,500 rpm
- Operating Weight: 5493 kg (12,100 lb.)

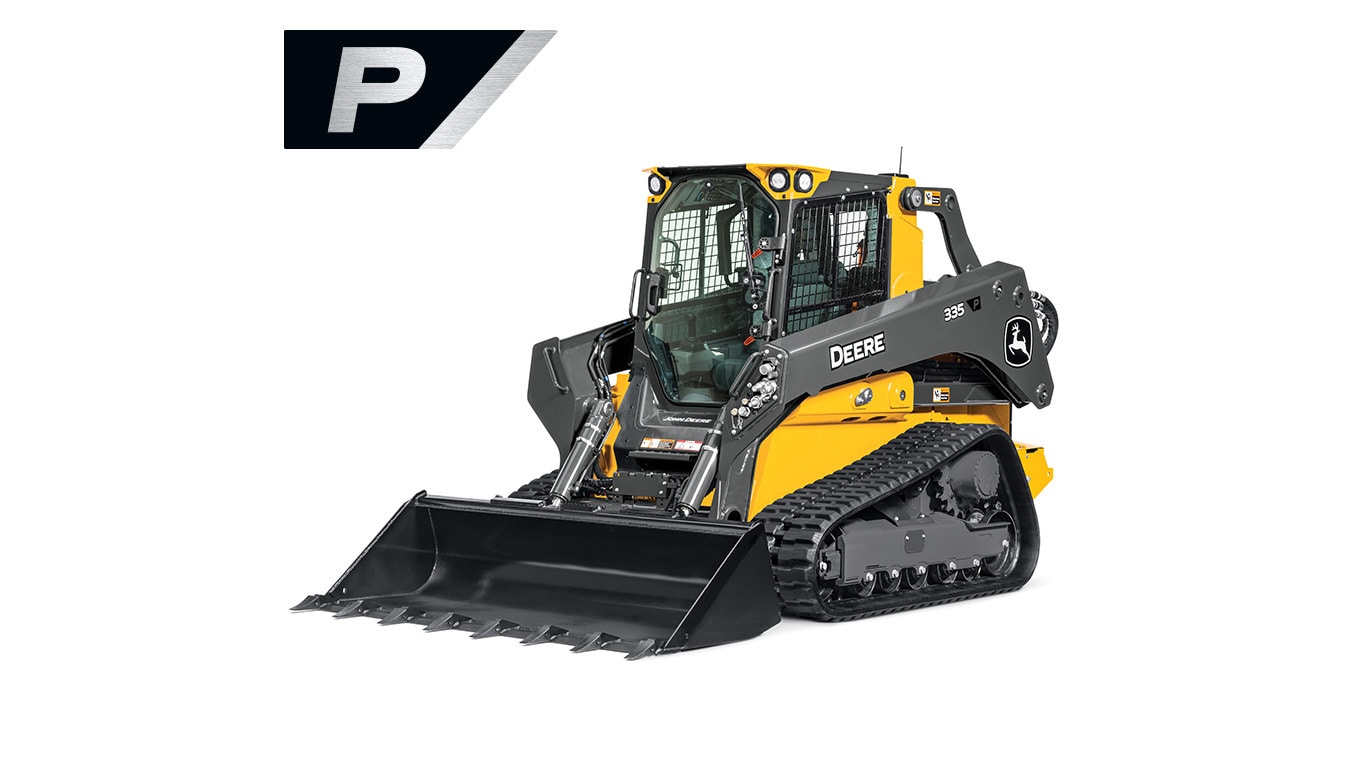

335 P-Tier
Compact Track Loader
- Rated Operating Capacity: 1827 kg (4,025 lb.)
- Gross Horsepower: 88.0 kW (118.0 hp)
- Operating Weight: 5584 kg (12,300 lb.) / 6148 kg (13,542 lb.) with SG96 Dozer Blade
- Net Horsepower: 85.5 kW (114.7 hp)
Excavators
FIT IN
MORE WORK
Featuring a zero-tail-swing design and retractable undercarriage, the ultra-capable yet compact E18ZS squeezes more work out of areas where you would normally need a shovel. Load-sensing hydraulics provide smooth control. Plus its two-speed travel with automatic shifting and small size make this excavator quick and maneuverable, so you can easily move on to the next job.
E18ZS
Compact Excavator
- Net Power: 13.8 kW (18.5 hp)
- Max Digging Depth: 2.32 m (7 ft. 7 in.)
- Operating Weight: 1836 kg (4,047 lb.)

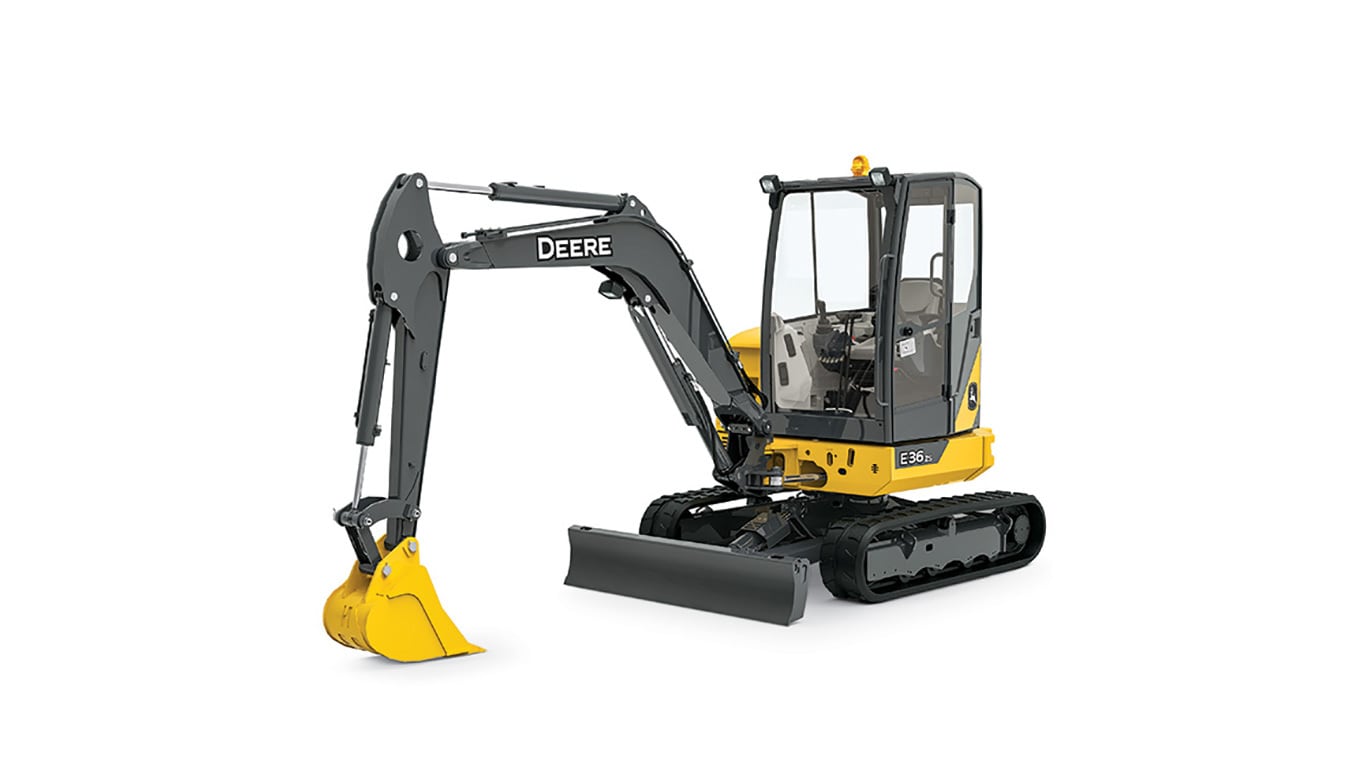

E36ZS
Compact Excavator
- Net Power: 22.2 kW (29.7 hp)
- Max Digging Depth: 3.24 m (10 ft. 7 in.)
- Operating Weight: 3718 kg (8,196 lb.)
